Mellcon Auto Drains are most economical, simple & maintenance free systems. The compressed Air / Gas contains Inherent moisture which will condense in receiver tanks, filters and pipelines, which requires regular draining systems. Auto Drains are available in two options namely: 1) ELECTRONIC TIMER DRAIN. 2) LEVEL BASED ZERO LOSS CONDENSATE DRAIN

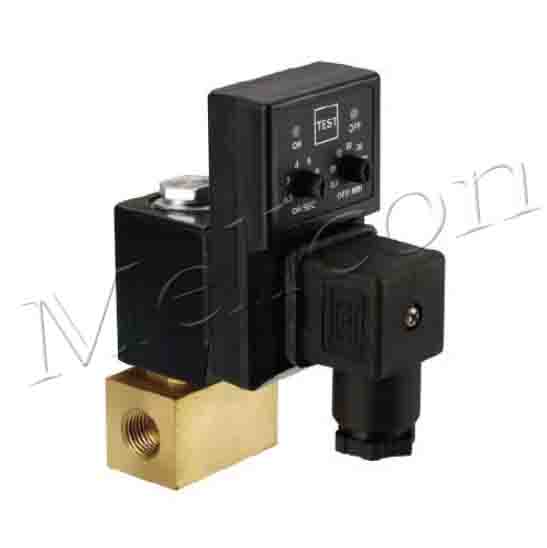

Electronic Timer Based Auto Drain Traps ( Model No: ACDT - 6 )
Mellcon Auto Drain Trap Model ACDT - 6 is 2/2 way pilot operated. Fully automatic, Maintenance free, easy to install and suitable to drain condensate from compressed air system like Dryer, Receiver, Moisture Separator etc.
Discharge In Ltrs. v/s Pressure v/s Interval Time Drain Time 4 Sec.   Orifice 12mm Interval Time in Min. Discharge Per Day (Approx. in Lits. ) Approx No. of Operation Per Day 1 315 500 675 820 950 1010 1270 2 173 275 371 450 522 555 698 4 90 142 192 232 270 286 360 8 36 57 77 93 108 115 144 16 22 35 48 58 67 72 90 32 11 18 24 29 34 36 45 64 5 8 11 14 16 17 21 128 2.7 4.3 5.8 7.1 8.2 8.7 11 Pressure in Kg/Cm2 2 4 6 8 10 12 --------------------------
TECHNICAL SPECIFICATION MWP 15 Kg/Cm2 Drain Time 4 Sec / Adjustable Connections 1/2" BSF (F) Interval Time 1-128 Min. Adjustable Orifice 12 mm Supply Voltage 180-260 V AC, 50 Hz Max .Operating Humidity up to 100 Enclosure DP Mounting Any Position Material Moulded in Impact Resistant ABS Max. Operating Temp. 70 o C (Maximum) Finish Gray Body Material Aluminium Indication R, Y & B
Electronic Timer Based Auto Drain Traps ( Model No: ACDT - 3 )
Mellcon Auto Drain Trap Model ACDT - 3 is 2/2 way Direct Acting. Fully automatic, Maintenance free, easy to install and most reliable to drain condensate from compressed air system like Dryer, Receiver, Moisture Separator etc.
Discharge In Ltrs. v/s Pressure v/s Interval Time Drain Time 4 Sec.   Orifice 2.5 mm Interval Time in Min. Discharge Per Day (Approx. in Lits. ) Approx No. of Operation Per Day 1 220 330 445 508 570 660 1270 2 122 180 245 280 314 363 698 4 63 94 126 144 162 187 360 8 25 38 50 58 65 75 144 16 15 23 31 36 40 47 90 32 8 12 15 18 20 24 45 64 4 5.5 7.4 8.4 9.4 11 21 128 2 2.8 3.8 4.1 4.6 5.6 11 Pressure in Kg/Cm2 2 4 6 8 10 12 --------------------------
TECHNICAL SPECIFICATION MWP 16 Kg/Cm2 Drain Time 4 Sec / Adjustable Connections 1/2" BSF (F) Interval Time 1-128 Min. Adjustable Orifice 2.5 mm - 5.00 mm Supply Voltage 180-260 V AC, 50 Hz Max .Operating Humidity up to 100 Enclosure DP Mounting Any Position Material Moulded in Impact Resistant ABS Max. Operating Temp. 70 o C (Maximum) Finish Gray Body Material Aluminium Indication R, Y & B
Electronic Level Based zero loss Auto Drain Traps
Mellcon Level Based Auto Drain Traps have an electrical level sensing capability which only discharge when condensate is present, Thus preventing unnecessary loss of valuable compressed air. This intelligent sensing system operates with oil and water. The unique fault diagnostic feature gives indication if valve is clogged, coil burnt, loose supply connection or electronic unit is faulty with facility to reset, after the fault is cleared. Features Fully Automatic. Designed to complement all compressed air system including compressors, filters, water separators, dryers, coolers and air receivers. Easy mounting and installation. Zero air loss, Zero energy loss, Less maintenance. 5 MM Orifice. MWP 15 Kg/Cm2. ACDT- 6 has 6 MM Orifice. Manual Test Switch. Indication for Valve Healthiness. Easy to Replace. Glass Filled Nylon Coil Former. "O" Ring Seal On Cycle Adjustment Pots to Ensure Weather Proof Sealing. Small Compact Resistant ABS Timer. No Tool required to Replace Timer.
Optional
FINE FILTER
To ensure a continuous filtration of condensate. The fine filter stops the flow of particulates, for example rust particles, strands of hemp or oily mud etc. Sediment collected at bottom of the filter bowl can simply be removed by flushing with the flick of a finger. SPECIFICATION Supply Voltage 240 VAC (180-260 VAC), 50 Hz ( Other on request ) Operating Temperature 70 o C (Maximum) Enclosure Housing High Impact ABS dark gray Ip 65. Operating Temp:- 20o C to 100o C Connection DIN 43650 A With Power Indication Indication Led (Red) - Power On Led ( Yellow) - "ON" if fault occurs Led (Green) - "ON" During Drain Cycle Test Switch For Manual Test Drain Reset Switch To Reset valve after clearing of fault.
